Pallet Rack Components
Pallet Rack Components for Repair + Protection
At RackmedX, we build and install premium-quality components for all repair services. They can be installed on any type of rack, no matter the damage. Reach out to us to learn more about our selection of components and the benefits of each. Call us at (800) 708-1249.

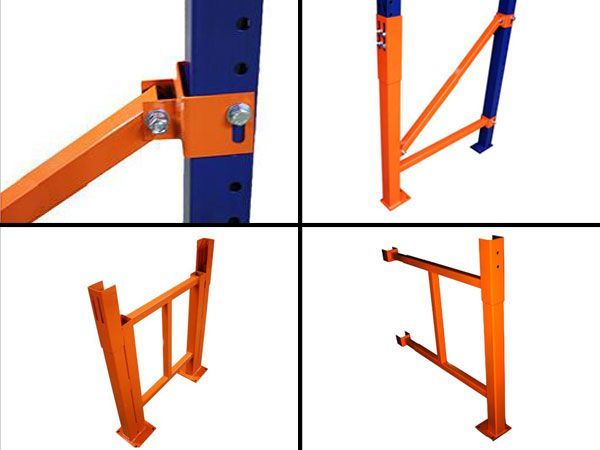

RackmaX RXFB, RXSB and RXHB (7X) Impact Protection
RMXII (bottom right) and RMXH (bottom left) may require additional X- braces.
RMXF Pallet Rack Repair Component
RXFB (top right) are bolt-installed on a damaged rack column, and it includes all structural tube steel construction.
All RMXH Repair Component
When both front and rear columns are damaged (bottom left).
Contact RackmedX for a free damage survey and exact cost to repair + protect your damaged racks. (800) 708-1249 or email: sales@rackmedx.com
Rack Repair Components
Rack repair components can be designed and fabricated to accept load beams anywhere on the repaired rack column. Often, the damage is at or near the load beam, and a section of the repair component needs to accommodate the load beam's reinstallation.
Load beams can be accommodated in two ways: A section of a compatible factory rack column can be inserted into the rack repair component, or a load beam pocket can be installed. If you need the ability to relocate load beams, we can fabricate for that as well.
Horizontal replacement braces are fabricated with structural tube steel, which is 1 3/4" x 1 3/4" and adjustable to fit any rack depth. These braces simply bolt through the existing beam-locking holes on the rack, and they can be color-matched. The diagonals can be adjusted to the proper angle and length.

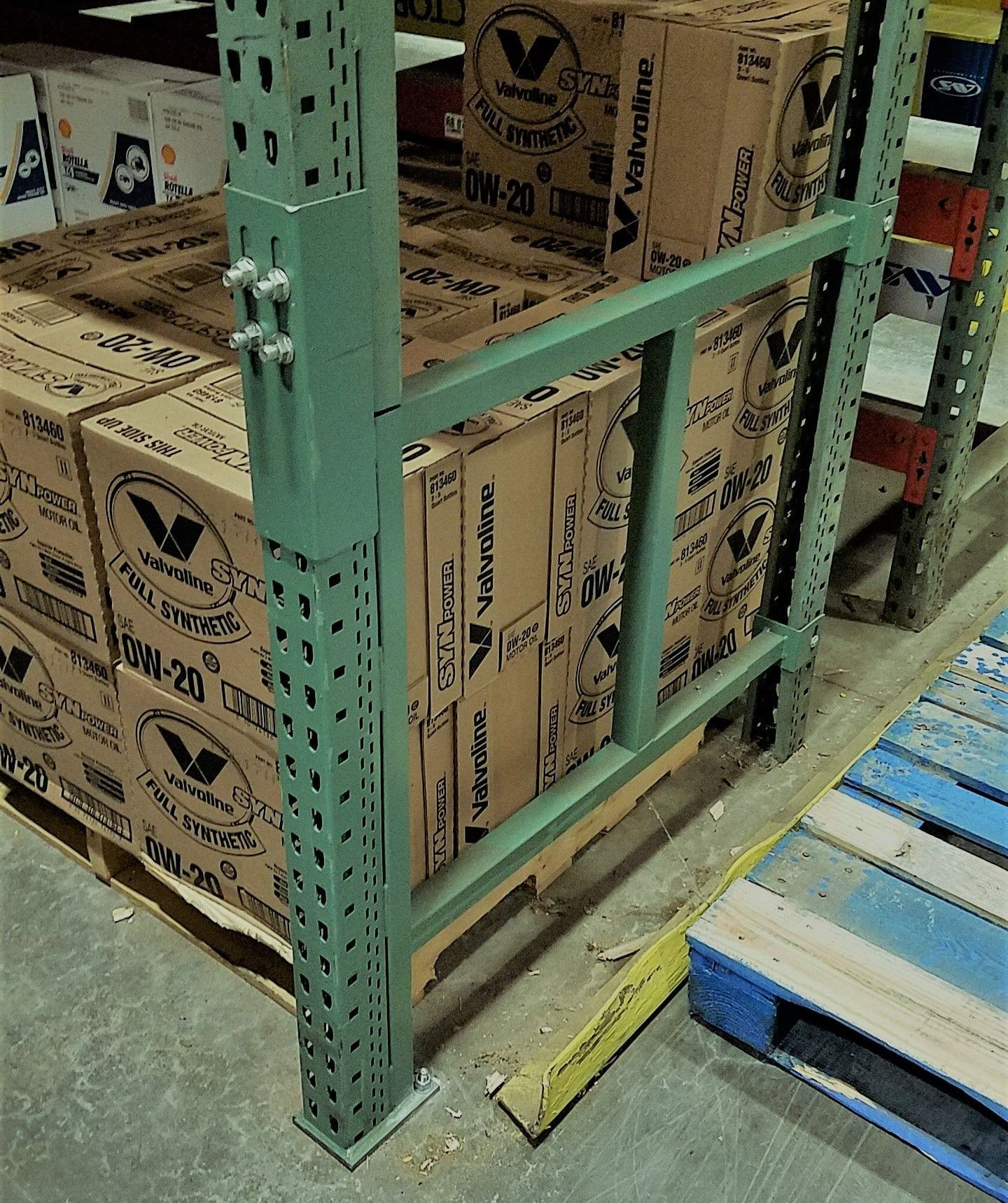

RMXCS
EconomaX (our most requested service) for large repair projects where many racks are compromised. Installed by our factory technicians.
EconomaX pallet rack repair components are designed for reduced cost and are recommended for large projects where many repairs are needed. Impact protection is integrated into every EconomaX component.
EconomaX can be fabricated to repair damage anywhere on the rack column, including at or above load beams wherever they are located. All EconomaX components are reinforced with 11-gauge column protection.
All 3" x 1.5" rack columns are reinforced with 3" x 1.5" tube steel (backer column) to bring column dimensions to 3x3.
For facilities with many damaged racks you can request a damage survey and an exact quote by contacting Ben Wooley at 901-378-2308 or email benwooley@rackmedx.com.
RackmaX Premium Components
Fabricated for ease of installation, increased load bearing and 7x impact protection.
RackmaX II
Single column repair component.
RackmaX H
Double column repair component.
RackmaX F
Certain racks may require this configuration.
